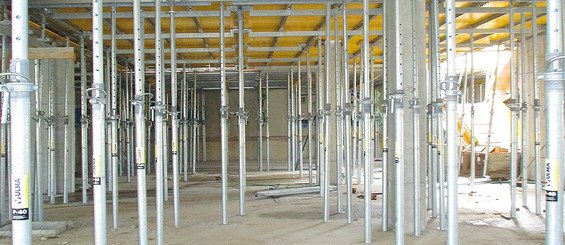

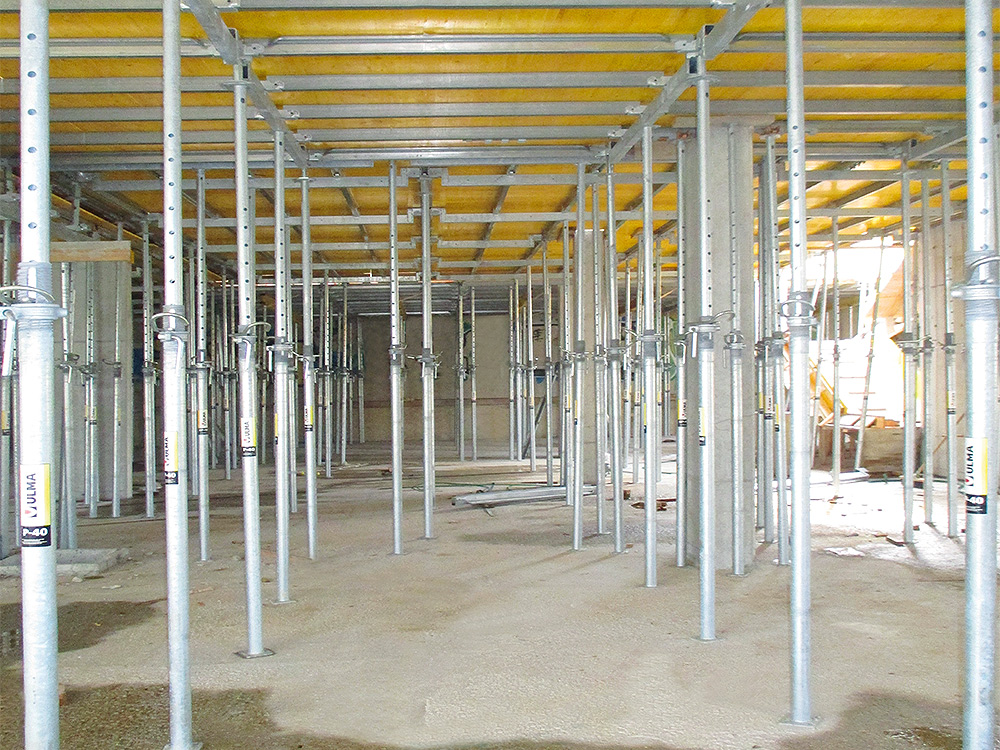

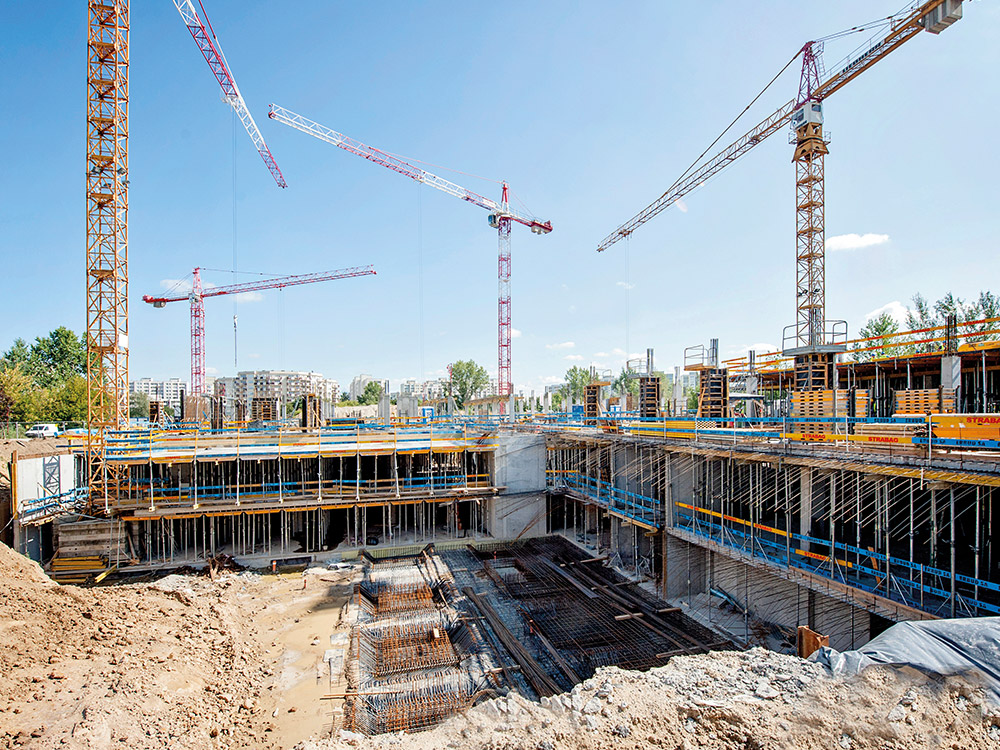

Designed for shoring of slab formwork, as well as for various requirements of shoring that may arise on site.
Download TP PROP Catalogue
It is mainly characterized by its design based on standard EN 1065. The most important requirements of this standard are,
- Hot-dip galvanized prop.

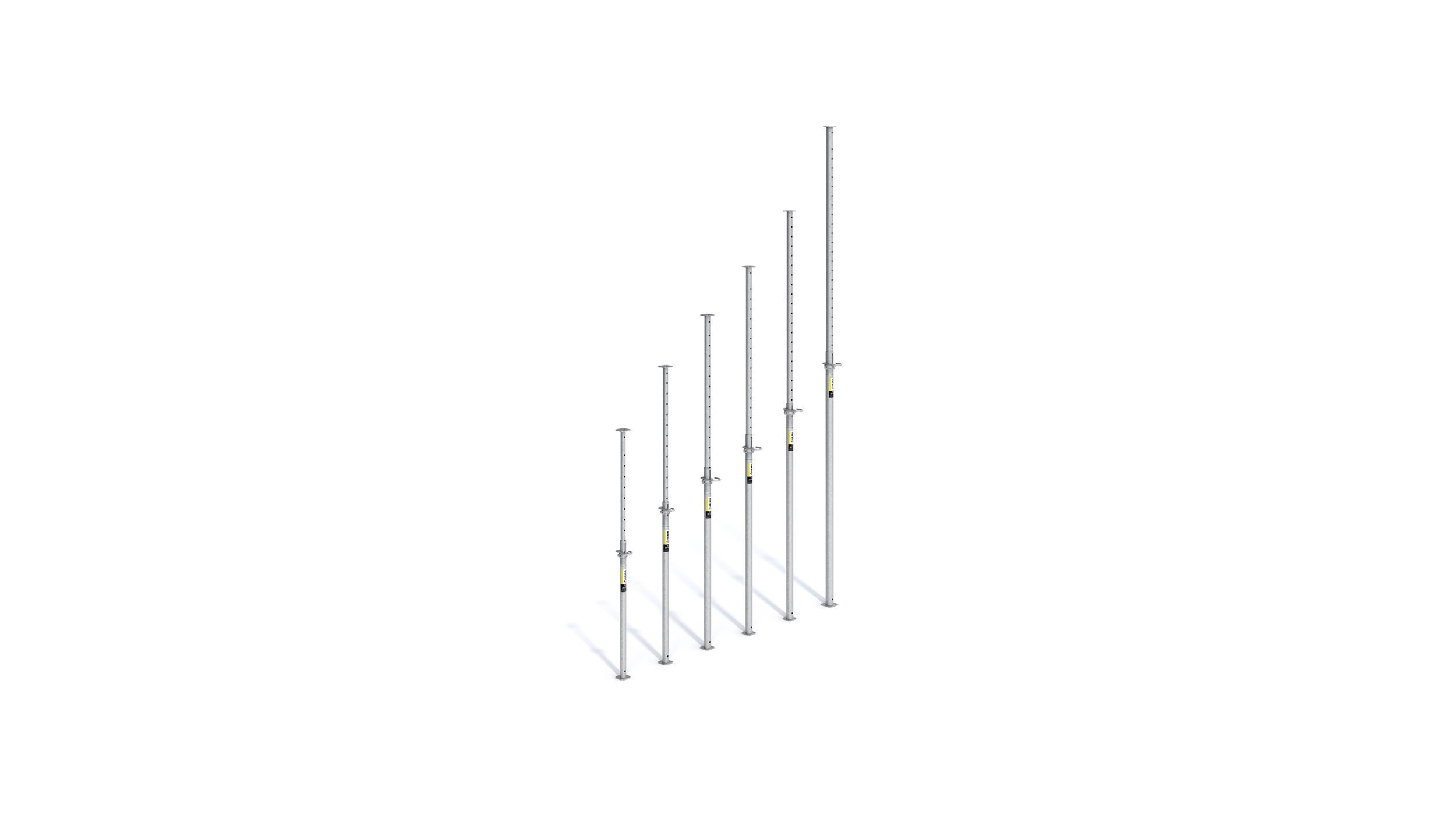

- Range of props:
| TP PROP | LENGTH (min. - max.) |
WORKING LOADS (max. - min.) |
| TP Prop 20/250 | 1.4 m - 2.5 m | 30 kN - 20 kN |
| TP Prop 20/300 | 1.8 m - 3 m | 30 kN - 20.3 kN |
| TP Prop 20/350 | 1.9 m - 3.5 m | 30 kN - 21.2 kN |
| TP Prop 20/400 | 2.3 m - 4 m | 30 kN - 21.2 kN |
| TP Prop 20/450 | 2.5 m - 4.5 m | 30 kN - 20 kN |
| TP Prop 20/550 | 3.0 m - 5.5 m | 30 kN - 20.3 kN |
- With unintentional disengagement system for the inner tube, cotter pin and collar nut.
- Collar nut thread designed to ease the evacuation of dirt and concrete remains.
- Collar nut with projection for simplified adjustment of the prop.
- Certified product in accordance with European standard EN 1065.
- Safe working thanks to the distance protecting the operator against crushing.
- Guaranteed high levels of safety:
- Prop certified in accordance with European standard EN 1065.
- Integrated anti-crush protection.
- Simple and fast collar nut adjustment.
- Inner tube, cotter pin and collar nut with unintentional disengagement system.
- Cost-effective thanks to an optimized design.
- High durability for multiple reuse, thanks to the hot-dip galvanization that provides excellent protection against corrosion.
- Simple and quick maintenance.
